Welcome to Micron Corporation. Micron provides engineering solutions including electronic design and assembly, energy management research, aerospace testing, and 3D CAD design.

MC100 Water Meter System
Transform your mechanical water meter into a sophisticated electronic meter at LOW COST. The Water Meter Reader MC100 is a retrofit electronic accessory which transforms a conventional mechanical water meter into an electronic water meter with remote monitoring and control capabilities. The MC100 electronic reading exactly matches the mechanical reading.

The Water Meter Reader can be configured for wireless signal output which is communicated to a Micron USB transciever on a PC or laptop. Micron's Data Aquisition and Control software gives a detailed view of signal analysis and water meter usage.

While having the same capabilities as expensive, late model RF based systems, the MC100 is inexpensive and simple to install into existing meters.

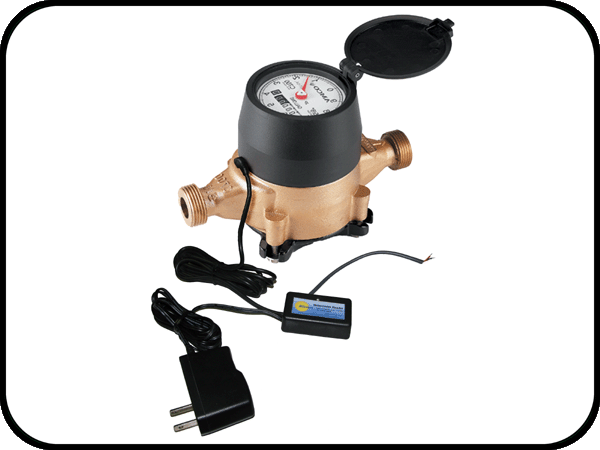

Product photo shows the MC100 with its sensor attached to a standard watermeter.

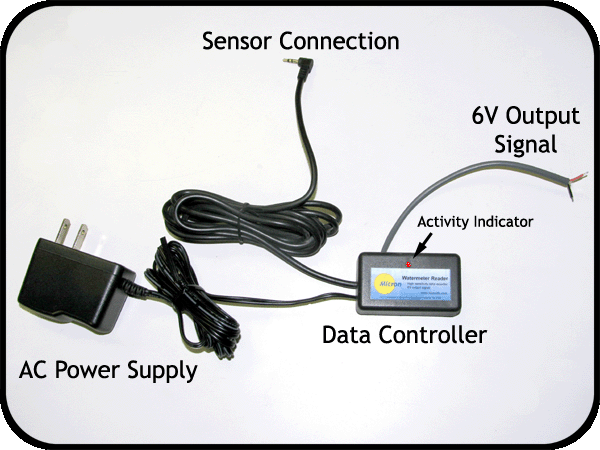

Product photo shows the MC100 with details labeled.

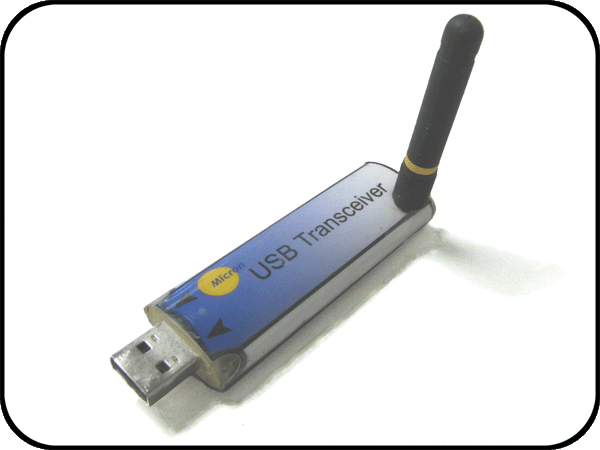

Product photo shows the MC82 USB Transceiver.

Product photo shows the MC82 software interface.

Part Number: MC100	Water Meter Reader	Cost $128
Output Signal: 6V Wired Signal Output Voltage: 6V to 0V	Signal stays steady at 6V, then drops briefly to 0V for each count from the sensor reading.

Part Number: MC100-RF	Wireless Water Meter Reader	Cost $158
Primary Output: 6V Wired Signal Secondary Output: Wireless Data Stream	Wired signal stays steady at 6V, then drops briefly to 0V for each count from the sensor reading. Wireless Signal transmitts sensor data and counts to the MC82 USB Transceiver.
